TECHNICAL DATA SHEET Model #LDO-1.75-5-45-BKStyleRaschel Knotless NettingFiberHigh Tenacity Polypropylene (HYPP)Cord Diameter3/16 Inch (5mm)Mesh Size1-3/4 Inch (45 mm)Mesh Break720 lbf (3.20 kN)Weight0.0727 lb/ft² (355 g/m²)Dynamic Drop Test12,075 ft-lb (16,373 N-m) 350lbs…

TECHNICAL DATA SHEET Model #LDO-1.75-5-45-BK-FRStyleRaschel Knotless NettingFiberHigh Tenacity Polypropylene (HYPP)Cord Diameter3/16 Inch (5mm)Mesh Size1-3/4 Inch (45 mm)Mesh Break720 lbf (3.20 kN)Weight0.0727 lb/ft² (355 g/m²)Dynamic Drop Test12,075 ft-lb (16,373 N-m) 350lbs…

TECHNICAL DATA SHEET Model #LDO-0.25-BK-FRMaterialKnit PolyesterMesh Size1/4 inch (6.35mm)Mesh Break250 lbf (1.10 kN)Dynamic Drop Test 2,500 ft-lb (3,254 N-m) 250lb test weight dropped into
10ft x 10ft bordered net from 10ft.Weight0.833…

TECHNICAL DATA SHEET Model #LDO-#42KN-NYLON-1.75-BK-FRConstruction42 Twisted Nylon 3 Strand. DuPont 6-6 728 nylonCord Diameter0.092in.Mesh Size1-3/4 inch (45mm)Tensile Strength390lb. MinimumFabric Weight0.043 lbs. Per square footFinishAcrylic LatexUVExtra UV Stabilizers addedFire RatingMeets NFPA-701…

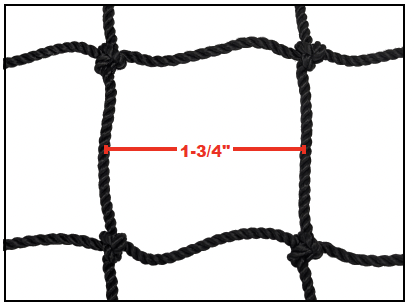

TECHNICAL DATA SHEET Model #LDO-#36KN-NYLON-1.75-BK-NFRConstruction36 Twisted Nylon 3 Strand. DuPont 6-6 728 nylonCord Diameter0.085in.Mesh Size1-3/4 inch (45mm)Tensile Strength350lb. MinimumFabric Weight0.0358 lbs. Per square footFinishAcrylic Latex (asphalt “tarring” optional)UVExtra UV Stabilizers…

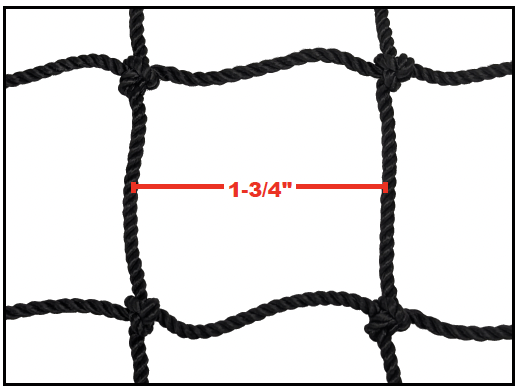

TECHNICAL DATA SHEET Model #LDO- #36KN-NYLON-1.75-BK-FRConstruction36 Twisted Nylon 3 Strand. Nylon 6Cord Diameter00.085in.Mesh Size1-3/4 inch (45mm)Tensile Strength304lb. AverageFabric Weight0.0259 lbs. Per square footUVExtra UV Stabilizers addedTypical UsesBaseball Batting Cages, Barrier…

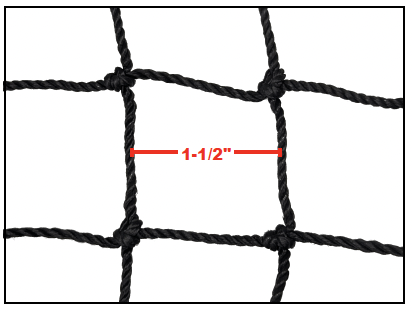

TECHNICAL DATA SHEET Model #LDO-#30KN-NYLON-1.50-BK-FRConstruction30 Twisted Nylon 3 Strand. Nylon-6Cord Diameter0.078in.Mesh Size1-1/5 inch (38mm)Tensile Strength264lb. AverageFabric Weight0.042 lbs. Per square footMelting Point345oF (174oC)UVExtra UV Stabilizers addedTypical UsesBarrier NettingColorBlack Border Options…

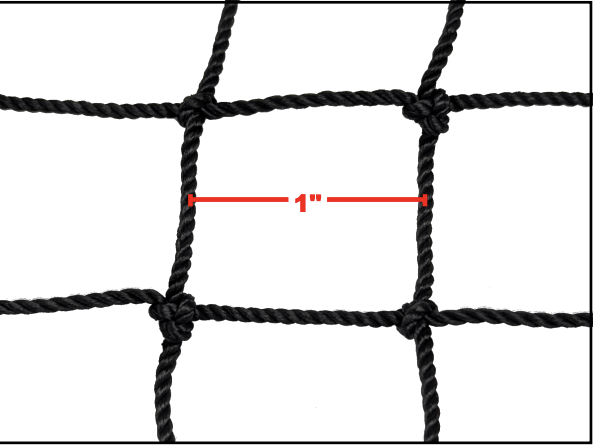

TECHNICAL DATA SHEET Model #LDO-#18KN-NYLON-1.00-BKConstruction18 Twisted Nylon 3 Strand. DuPont 6-6 728 nylonCord Diameter0.085in. (2.16mm.)Mesh Size1 inch (25.4mm)Tensile Strength191lb. MinimumFabric Weight0.034 lbs. Per square footFinishAsphalt, Acrylic Latex (asphalt “tarring” optional)
UV…

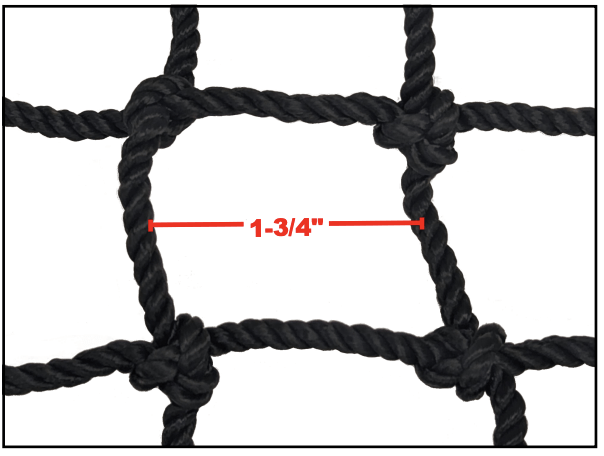

TECHNICAL DATA SHEET Model #LDO-#96KN-NYLON-1.75-BK-FRConstruction96 Twisted Nylon 3 Strand. Nylon 6Cord Diameter0.158in.Mesh Size1-3/4 inch (45mm)Tensile Strength838lb. AverageFabric Weight0.157 lbs. Per square footFinish#1-7%+#6-10% Resin Treated
UV Extra UV Stabilizers addedFire RatingNFPA-701 and…
